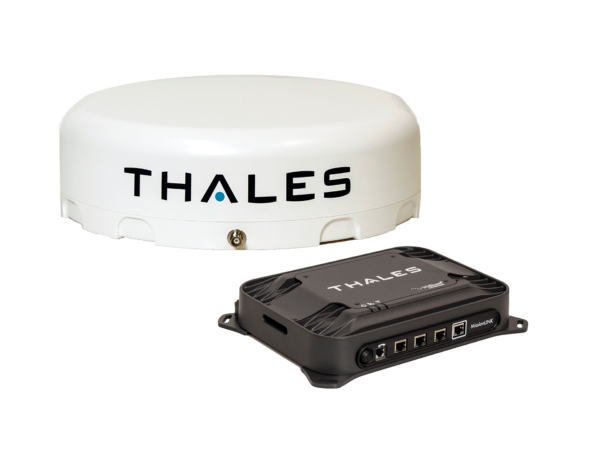

Thales MissionLINK- Iridium Certus

$9,194.25

MissionLINK utilizing Iridium Certus gives your critical operation global communications coverage regardless of the landscape. It is the solution to depend on for essential communications wherever your mission takes you. Whether you operate as part of a deployed force or an individual user, this commercialized, military-grade solution is designed to meet your unique challenges through a simple, adaptable and robust design.

Category: Tags: ,

Description

MissionLINK

MissionLINK on Iridium operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications.

MULTI-SERVICES PLATFORM

  • IP data sessions up to 700kbps (down)/352kbps (up)
  • Streaming up to 256kbps
  • 3 high quality voice lines
  • Location tracking
  • PTT ready

SOLUTION READY FEATURES

• Easy to use interface, all functionality available at distance

• Ruggedized Android tethered handset
• 4G LTE ready, Softphone capability
• Application enabled functionality for Android and iOS • Embedded 802.11b/g Wi-Fi access point
• Multiple user capability
• Lightweight IP66 rated single cable ADU Antenna

TECHNICAL PARAMETERS

Size

12 in x 9 in x 3 in (30.5 cm x 22.9 cm x 7.6 cm)

Weight

7.5 lb. (3.4 kg)

Power

12 VDC input, 11A max (7A avg.), includes powering external HGA-2 Antenna

Connectors

Front: RJ-45 LAN (3) Class 2 PoE
RJ-45 WAN (1) for cellular connection
RJ-14 POTS
Rear: DC Power Input (10-32V) MIL-STD-1275D
DC Power Input, +12V Regulated
GPIO (RS-232, +12V out, DISTRESS, Radio Gateway, GPIO)
TNC Connector, RF connection to Antenna
Wi-Fi reverse SMA
SIM slot

Mechanical Vibration and Shock

MIL-STD-810G, Test Method 514.6, Proc. 1, Category 20, Annex D
MIL-STD-810G, Test Method 516.6, Proc. IV



ANTENNA SPECIFICATIONS

High-gain, electronic phased array antenna to enable the fastest upload and download speeds to cover any land communications need from safety services to operational reporting and logging

Size

14 in x 4 in h
(35.6 cm dia. x10.2 cm h)

Weight

7 lb. (3.2 kg)

Power

Directly powered by the terminal at 24 VDC

Operating Temperature

-30 to +55 degrees C

Mechanical Vibration and Shock

MIL-STD-810G, Test Method 514.6, Proc. 1, Category 20, Annex D MIL-STD-810G, Test Method 516.6, Proc. IV

Additional information

Weight 18 lbs
